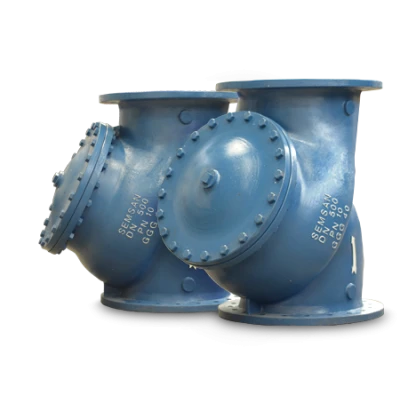

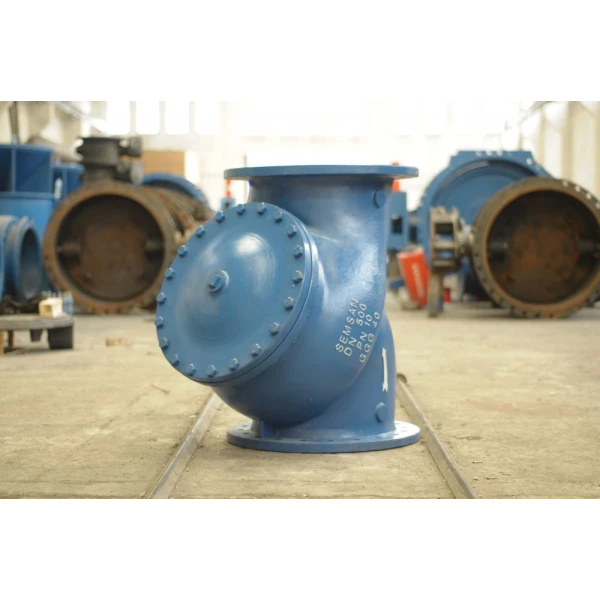

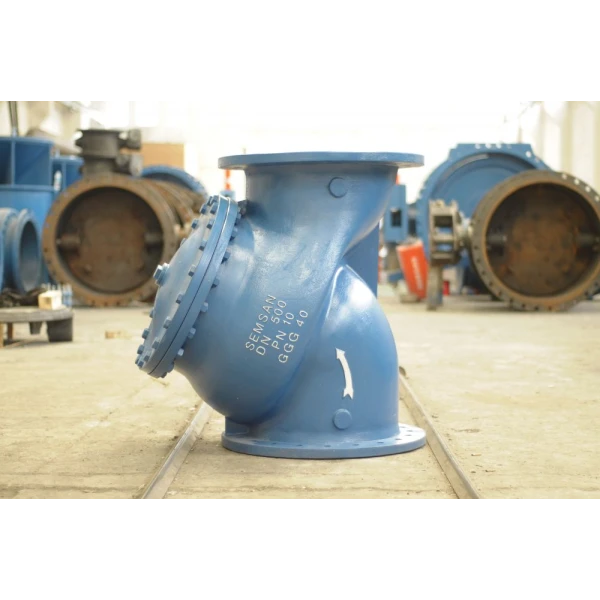

Y-TYPE STRAINER

Y-TYPE STRAINER

Product information

DN150/600 | PN10/16/25

The Y-type strainer filters solid impurities in water lines with its angled screen, protecting downstream equipment. Its compact body offers low pressure loss and easy maintenance. DN 150-600, PN 10/16/25.

Application

  • Entrance of control valves

  • Drinking water treatment plants

DESIGN

  • Body is 65° horizontal to flow

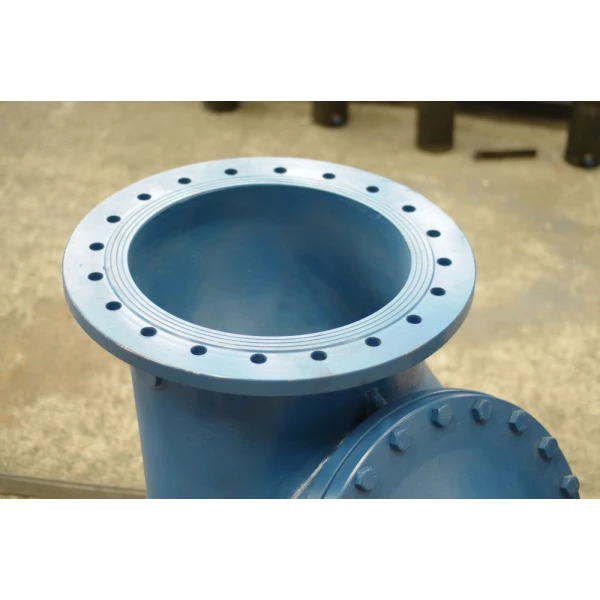

  • Flanges DIN EN1092

  • PN 10/16/25

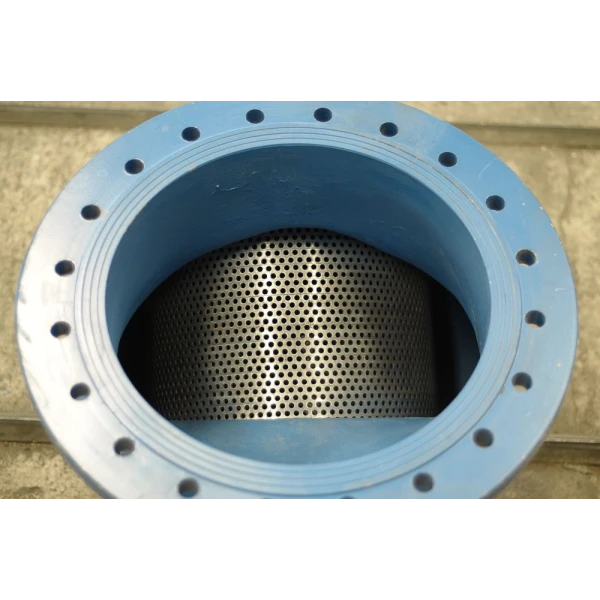

  • Perforated filter is stainless steel

  • There is a plug for cleaning residuals dirty on the filter

MATERIAL

  • Body ductile iron GGG-40/50

  • Filter is stainless steel

  • Flange connection bolts are galvanized steel

CORROSION PROTECTION

  • Electrostatic Powder Coating for Drinking Water

  • Zinch – Rich Epoxy Primer

  • Coal – Tar Epoxy

  • Glass Flake Epoxy

  • Enamel Epoxy for Ultraviolet

  • Completely Stainless Steel Design

  • Ebonite Coating for Seawaater

OPTIONAL

  • DN > 600

  • Manometers are input and output of strainer

  • Discharge valve on blind flanges

  • All of body stainless steel

Production Colors

Production Diameters and Pressures

DN

  • 150
  • 200
  • 250
  • 300
  • 350
  • 400
  • 450
  • 500
  • 600

PN

  • 10
  • 16
  • 25
  • 40

Documents

STYT Y Type Strainer Product Catalog EN | Catalog (2023)

Product Images
