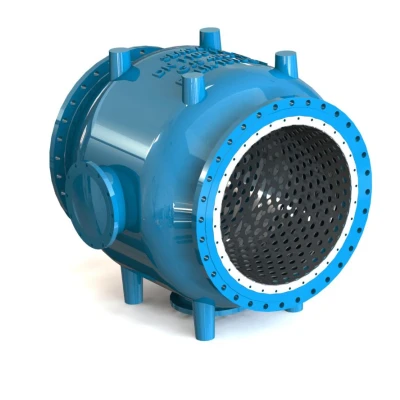

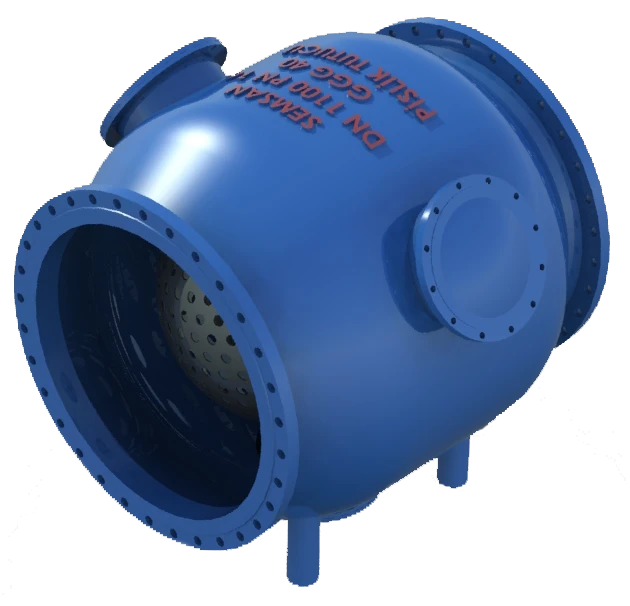

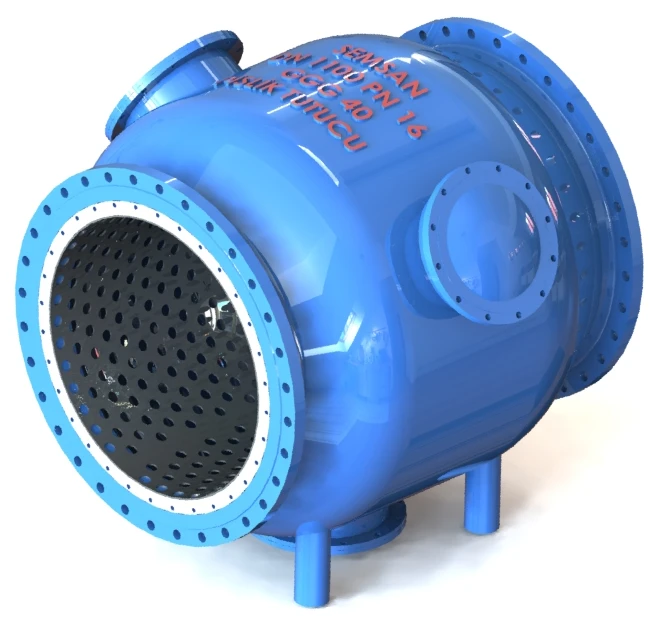

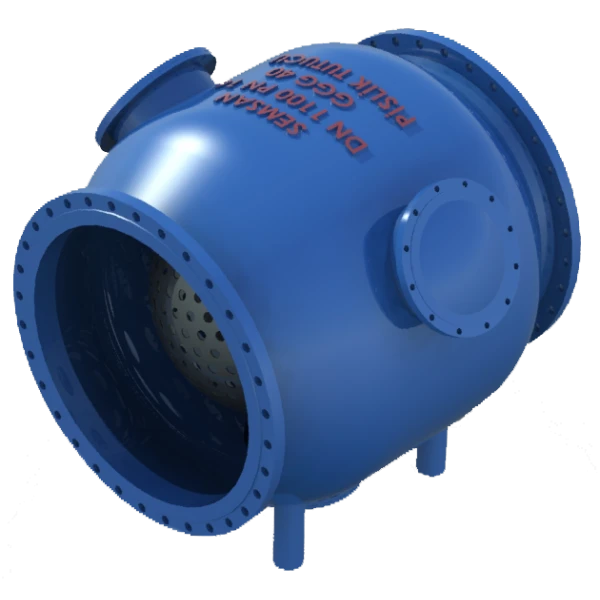

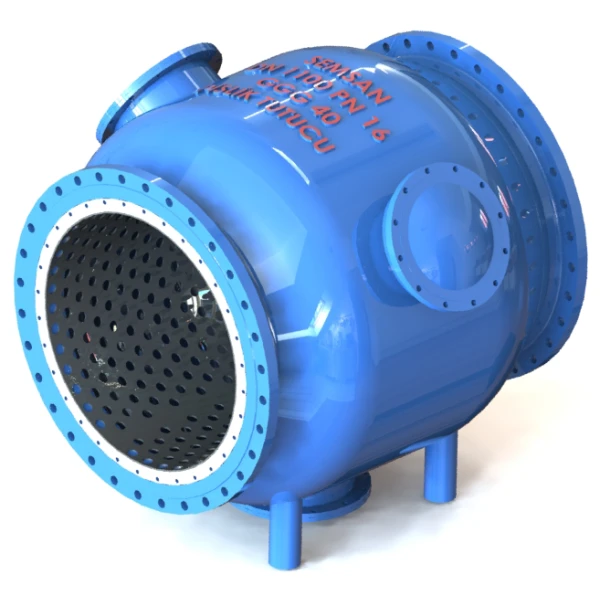

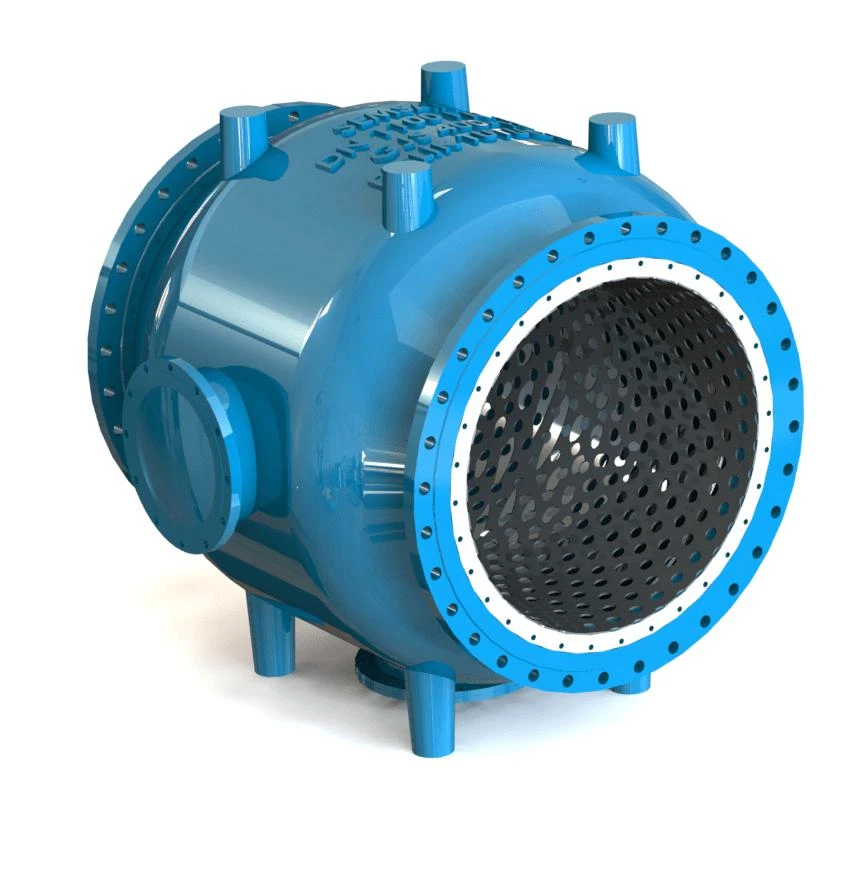

INLINE STRAINER

INLINE STRAINER

Product information

DN700/1400 | PN10/16/25

The inline strainer protects pumps, valves and measuring instruments by capturing solid particles in the pipeline. Its compact body allows easy screen cleaning and low pressure drop in large-diameter lines. DN 700-1400, PN 10/16/25.

Application

  • Enterance of Control Valves

  • Drinking water treatment plants

MATERIAL

  • Body ductile iron GGG-40/50

  • Filter is stainless steel

  • Flange connection bolts are galvanized steel

DESIGN

  • Designed in parallel with the flow

  • Flanges DIN EN 1092

  • Suitable for PN 10/16/25

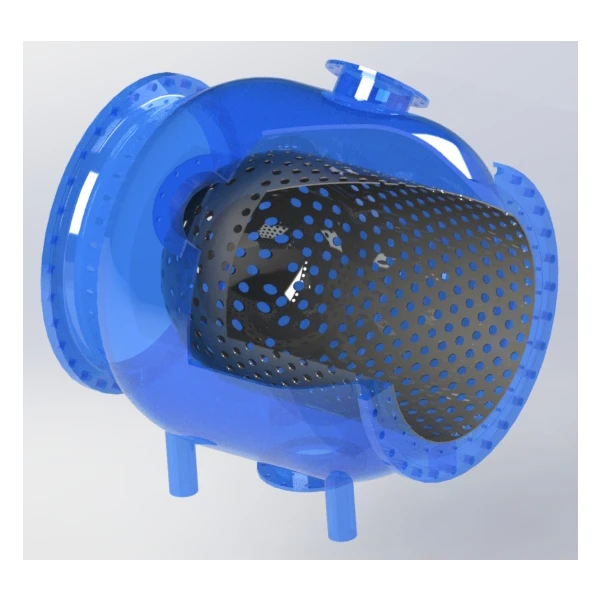

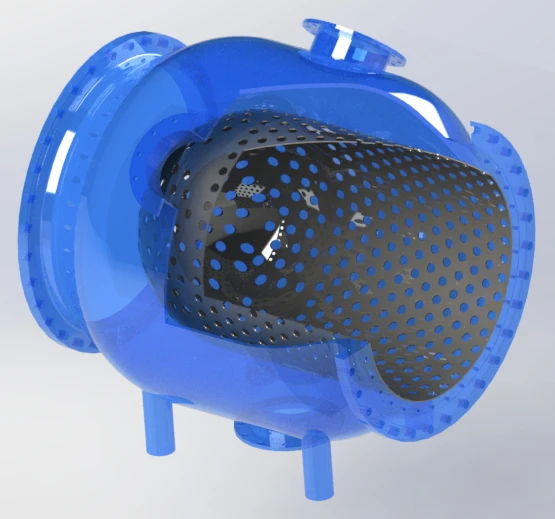

  • Stainless steel perforated filter

  • Filter without removing the valve or line , allowing clear all the accumulated sediment compact design

  • Two input for clean water filter cleaning

  • Sewage outlet cover under valve

CORROSION PROTECTION

  • Electrostatic Powder Coating for Drinking Water

  • Zinch – Rich Epoxy Primer

  • Coal – Tar Epoxy

  • Glass Flake Epoxy

  • Enamel Epoxy for Ultraviolet

  • Completely Stainless Steel Design

  • Ebonite Coating for Seawaater

OPTIONAL

  • DN > 1400

  • Manometers are input and output of strainer

  • Discharge valve on blind flanges

  • All of body stainless steel

Production Colors

Production Diameters and Pressures

DN

  • 500
  • 600
  • 700
  • 800
  • 900
  • 1000
  • 1100
  • 1200
  • 1400
  • 1600

PN

  • 10
  • 16
  • 25
  • 40

Documents

STIL Inline Type Strainer Product Catalog Butterfly Valve
